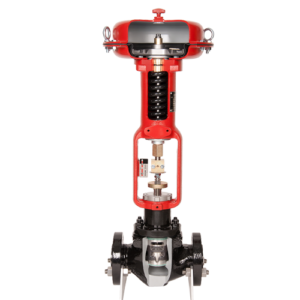

Mark ED & ET Series (1″ – 6″)
Globe Style Control Valve
The Mark E Series (1" - 6") is a single port, globe-style body with composition or metal seats and a balanced push-down-to-close valve action plug.
There are two styles of globe style control valves available, providing excellent pressure and flow control on steam, gasses and various liquid applications
- Top entry cage design allows easy, in-line maintenance
- Balanced plug allows the use of smaller actuators
- Characterized flow options including equal percentage, linear and quick opening
- Available in a variety of body and trim materials make the E Series suitable for a variety of applications including liquids, gasses or steam
- Cage guiding allows the Mark E to handle high pressure drops while providing greater plug stability
- Sour service capability: Optional NACE MRO175/ISO15156-2009
- Tight shutoff
Size: 1″ – 6″
End Connections:
- ANSI Flanges – Class 150. 300, 600
- Raised Face or Ring Type Joint Flanges as per ASME B16.34 latest edition
Body Materials: LCC, WCB, WCC, WC9, C5, Monel, CF8M SST, additional materials may be available upon request
Trim Materials: 316SST, 416SST, 17-4PH, Alloy 6-Co.Cr-A, Cobalt, 316SST/Tungsten Carbide
Seats: Metal, PTFE
Shutoff:
- Mark ET: ANSI Class IV & V
- Mark ED: ANSI Class II & III
Maximum Inlet Pressure & Temperature: consistent with ASME Class per ASME 16.34
Maximum Pressure Drops: all valves are capable of full rated pressure drops
Flow Characteristics: Quick opening, linear, equal percent
Trim Options: Noise abatement, Anti-cavitation
Flow Direction: Flow Down
Valve Travel Indication: Valves are supplied with Visual Travel Indicator
