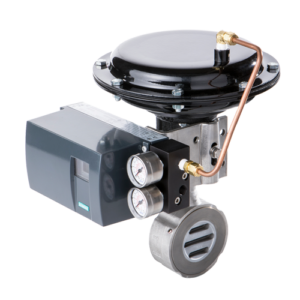

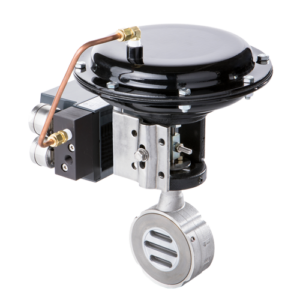

Mark 75 Series
Wafer Style, Motor Operated, Very Precise
The Mark 75 is a lightweight, compact wafer-style body that weights 10 times less than a traditional valve. We manufacture the valves using less steel and other raw materials. The shipping size, weight, packaging waste and costs decrease dramatically. The Mark 75 uses fewer fossil fuels not only when it is built and shipped, but also less power in its day-to-day operations and fewer resources when it needs maintenance.
- Pricing advantage: an incredible pricing advantage in the market place due to its wafer style body
- Weight advantage: less money and time on installation and support
- Capacity: great capacity in a compact wafer style body
- Ease of maintenance: the ‘T’ slot design connection into the disc allows for quick and easy reversing of functions
Sizes: 1″ – 8″ (DN25 – DN200)
Body Materials: Stainless Steel, Carbon Steel
Cv (Kv): up to 600 (up to 519)
Ranges: 3-15, 3-9*, 9-15*, 6-30 psi (0,2-1,0; 0,2-0,6*; 0,6-1,0*, 0,4-2,1 bar) * positioner required
Turndown Ratio: 100:1
Shutoff: ANSI Class IV tightness
Benefits of the Sliding Gate
Read on to learn the benefits of owning sliding gate regulators and control valves.
Sliding Gate Infographic
Download this infographic on the benefits of the sliding gate in regulators and control valves.
Sliding Gate Videos
Learn more about the sliding gate seat design by watching these videos.
CRN Number
Mark 75: 1″ – 8″
ATEX Certified
1″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 35M actuator
1″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 55M actuator
1″ Mark 75 Series, Carbon & Stainless Steel Barstock, with Integral 300# Ends, 35M actuator
1″ Mark 75 Series, Carbon & Stainless Steel Barstock, with Integral 300# Ends, 55M actuator
1-1/2″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 35M actuator
1-1/2″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 55M actuator
1-1/2″ Mark 75 Series, Carbon & Stainless Steel Barstock Body, with Integral 300# Ends, 35M actuator
1-1/2″ Mark 75 Series, Carbon & Stainless Steel Barstock Body, with Integral 300# Ends, 55M actuator
2″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 35M actuator
2″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 55M actuator
2-1/2″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 55M actuator
3″ Mark 75 Series, Carbon & Stainless Steel Barstock Body, with Integral 300# Ends, 55M actuator
3″ Mark 75 Series, Carbon & Stainless Steel Barstock Body, with Integral 300# Ends, 55M actuator
4″ Mark 75 Series, Carbon & Stainless Steel Barstock Body, with Integral 300# Ends, 55M actuator
4″ Mark 75 Series, Carbon & Stainless Steel, with Integral 300# Ends, 85M actuator
4″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 55M actuator
4″ Mark 75 Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 85M actuator
6″ Mark 75 Series, Carbon & Stainless Steel Bar Stock, with Integral 300# Ends, 85M actuator
1″ Mark 75SP Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 35M actuator and 16IQ Positioner
1″ Mark 75SP Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 35M actuator and 16IQ Positioner
1″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock, with Integral 300# Ends, 55M actuator and 16IQ Positioner
1-1/2″ Mark 75SP Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 35M actuator and 16IQ Positioner
1-1/2″ Mark 75SP Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 55M actuator and 16IQ Positioner
1-1/2″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock, with Integral 300# Ends, 35M actuator and 16IQ Positioner
1-1/2″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock, with Integral 300# Ends, 55M actuator and 16IQ Positioner
2″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock Body, with Integral 300# Ends, 35M actuator and 16IQ Positioner
2″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock Body, with Integral 300# Ends, 55M actuator and 16IQ Positioner
3″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock Body, with Integral 300# Ends, 55M actuator and 16IQ Positioner
3″ Mark 75SP Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 55M actuator and 16IQ Positioner
4″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock Body, with Integral 300# Ends, 55M actuator and 16IQ Positioner
4″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock Body, with Integral 300# Ends, 85M actuator and 16IQ Positioner
4″ Mark 75SP Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 55M actuator and 16IQ Positioner
4″ Mark 75SP Series, Carbon & Stainless Steel Cast Body, with Integral 300# Ends, 85M actuator and 16IQ Positioner
6″ Mark 75SP Series, Carbon & Stainless Steel Bar Stock Body, with Integral 300# Ends, 85M actuator and 16IQ Positioner
The Mark 75 Series is available for Next Business Day shipment.
Sizes: all
1″ – 6″ SST, standard Cvs, SMP, standard actuator
Exclusions may apply.
